The ‘bifacial’ shift: Why string sizing is the #1 failure point for DIY solar builds

Bifacial solar panels have become a mainstream choice for DIY solar projects. By capturing sunlight on both the front and rear sides, these panels can deliver 10–30% extra energy yield compared to traditional monofacial panels. It’s why I bought my first two last year to start replacing my ground units.

While the increased production is enticing, this shift introduces unique electrical design challenges. If you are planning a DIY installation, understanding how to size your strings correctly is essential. Poor string sizing is currently the most common reason for system underperformance, inverter clipping, and even equipment damage in bifacial arrays.

Debunking the ground clearance myth

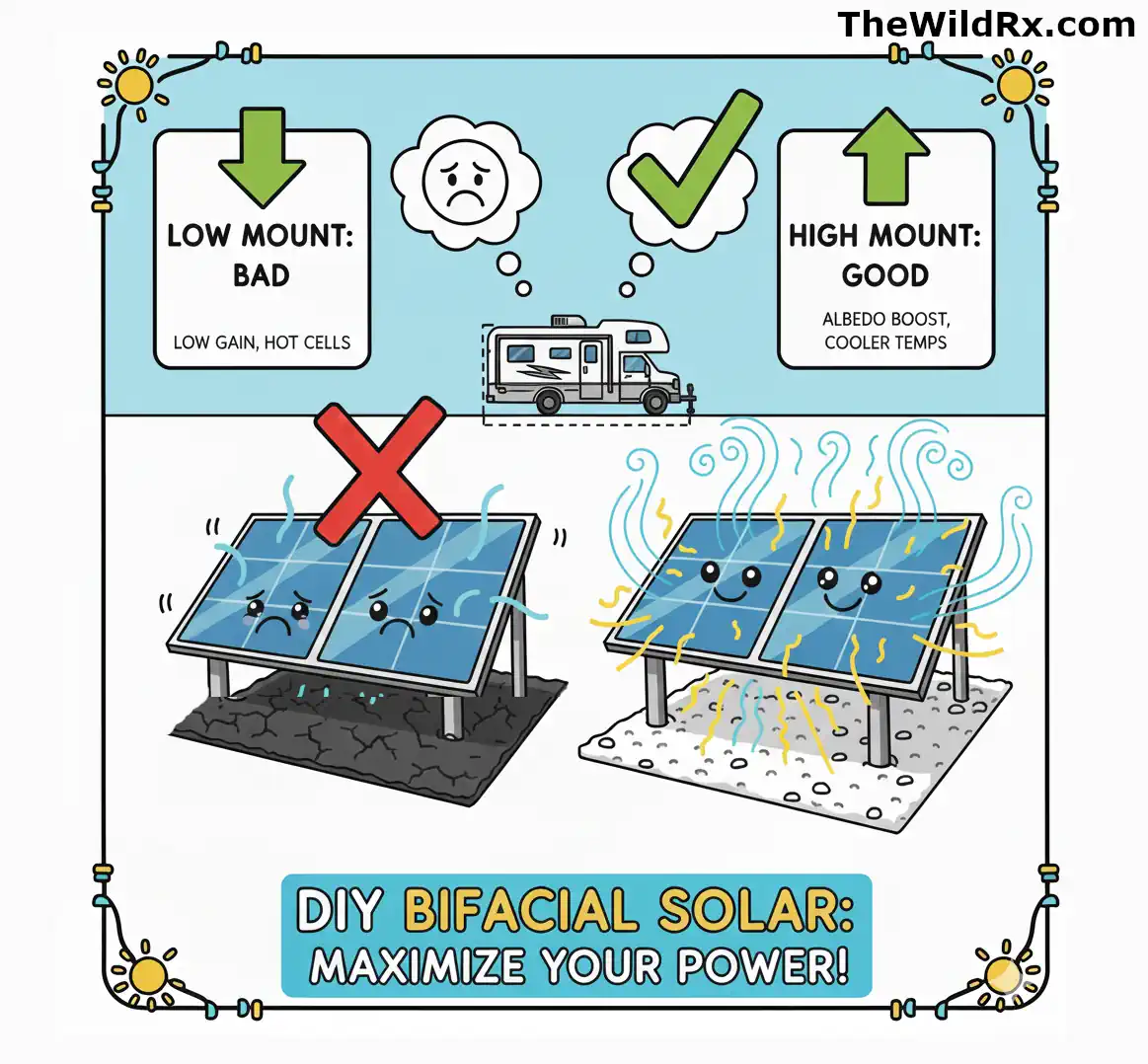

A common misconception in many DIY solar communities is that lowering a bifacial panel closer to the ground—closer to the reflective source—will increase output but this is wrong.

Bifacial studies consistently show that higher yields are achieved when panels are elevated, primarily due to the increased field of view. When a panel is higher, it has a broader “view” of the surrounding environment, allowing more surface area to reflect light onto the rear cells. If you lower a panel too close to the ground, the bifacial gain effectively drops toward zero; as you increase the height, the gain increases significantly.

Elevating panels provides two additional performance benefits:

• Lower operating temperatures: As you lift panels away from the ground—especially surfaces like black asphalt—you benefit from better convective airflow. This reduces internal cell temperature, which directly increases voltage and overall power output.
• Environmental exposure: The environment behind the panel dictates the quality of the albedo. Lifting the panel increases the total surface area contributing to that reflection.

Think about the difference between a bright sunny day after a snow vs no snow. You go outside and have to wait for your eyes to adjust. It’s also why my regular ground panels did well on cloudy days with snow on the ground.

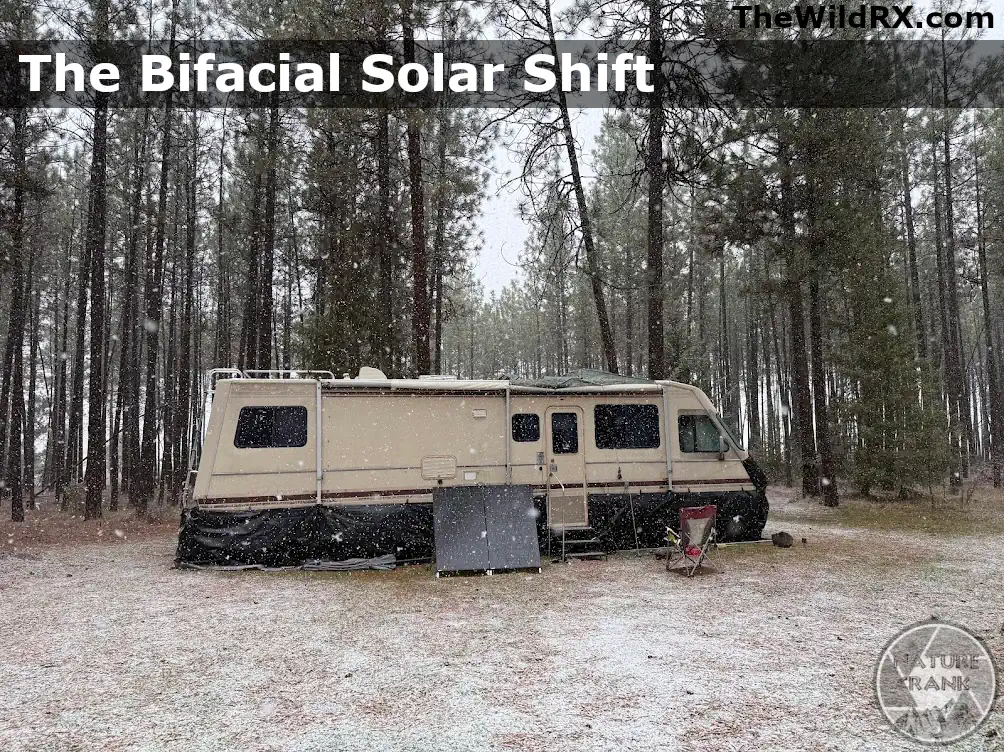

I should also point out a couple of things about my own setup. You’ll notice in the pictures that my panels are elevated, though they are not at the ideal one-meter height. Because these are temporary, cost-conscious units, I’ve kept them lower, but I still make sure they are spaced above the ground rather than sitting directly on it. This keeps them out of the elements and allows for some airflow, though I do have to keep the snow cleared away from underneath them.

You’ll also notice they are positioned near the RV; there is about five feet of space between the panels and the side of the unit. I could move them further out, but I prefer to keep the area clear of cabling at night for safety.

What makes bifacial panels different from monofacial panels

Bifacial panels feature transparent backsheets or dual-glass construction that allows albedo—reflected light from the ground or roof—to reach the rear solar cells. According to the Solar Energy Industries Association (SEIA), this interaction significantly boosts the module’s envergy yield by capturing scattered light.

Factors influencing rear-side energy gains

• Surface reflectivity (Albedo): Dark soil or grass offers minimal gain (5–10%), while high-reflectivity surfaces like white gravel, concrete, or snow can yield 20–30% more energy. For more on these performance factors, you can review the National Renewable Energy Laboratory (NREL) bifacial solar research data.
• Mounting height: To maximize rear exposure, panels should ideally be mounted at least 1 meter above the surface.
• Row spacing: Wider row spacing prevents self-shading, allowing more ambient light to reach the rear cells.

Note: Panel datasheets typically rate power based on front-side illumination under Standard Test Conditions (STC). Rear-side gains should be treated as “bonus” production rather than a baseline for your electrical calculations.

Why string sizing is critical for bifacial DIY setups

String sizing involves determining the number of panels to connect in series to feed an inverter or charge controller. While monofacial sizing relies on standard temperature-adjusted calculations, bifacial arrays add complexity because extra rear-side current can push the short-circuit current (Isc) higher than the nameplate rating.

Common risks of incorrect sizing

• Inverter current limits: Exceeding the inverter’s maximum input current leads to clipping, overheating, and potential hardware faults.
• Voltage spikes: Cold temperatures increase open-circuit voltage (Voc), which can exceed inverter input limits, even if you accounted for bifacial current gains.
• Mismatch issues: Uneven rear-side lighting (due to partial shading or irregular ground) can cause string mismatch, reducing overall system efficiency.

Quick reference: Bifacial system design limits

Step-by-step guide to correct string sizing

To ensure your DIY bifacial system remains safe and efficient, follow these design steps:

1. Gather datasheet specifications: Identify the front-side STC Voc, Isc, Vmp, and the temperature coefficient for Voc.
2. Calculate maximum string voltage: Factor in the record low temperature for your area.
   • Formula: Vmax = Voc x [1 + (temperature coefficient x (25 – min temp))]
3. Determine panel count: Divide the inverter’s maximum input voltage by your adjusted Voc, keeping a safety margin.
4. Validate current: Multiply your nameplate Isc by 1.2 to account for potential bifacial boost. Ensure your inverter’s maximum input current can handle this value.
5. Verify MPPT range: Ensure your string Vmp remains within the inverter’s MPPT (Maximum Power Point Tracking) window during the hottest expected day.

When verifying your strings, never rely on guesswork. Using a reliable digital multimeter with an amp clamp is the only way to accurately confirm that your setup is within the safety limits of your inverter after that bifacial boost.

Lastly, don’t forget the electrical protection. Read this artcle to learn more: The time I accidentally invented electrical aroma therapy: Proper fusing, breakers, and bus bars

Frequently asked questions about bifacial panels

My recommended DIY solar toolkit

• Digital multimeter with amp clamp: My go-to for verifying open-circuit voltage and short-circuit current.
• MC4 crimping tool kit: Don’t skimp here; good, weather-tight connections are non-negotiable for longevity.
• Adjustable solar mounting racks: These are great if you are trying to hit that 1-meter elevation sweet spot for maximum albedo. These are also great for panels when you’re boondocking.

Final thoughts: Mastering your bifacial solar project

Designing a successful DIY solar array requires moving beyond basic monofacial rules. By prioritizing proper mounting height to boost convective cooling and albedo capture—rather than falling for the ground-clearance myth—and by applying conservative string sizing math, you can safely harness the full power of bifacial technology. Remember, the goal is to design for the peak potential of your site while keeping your inverter and wiring safety margins intact.
